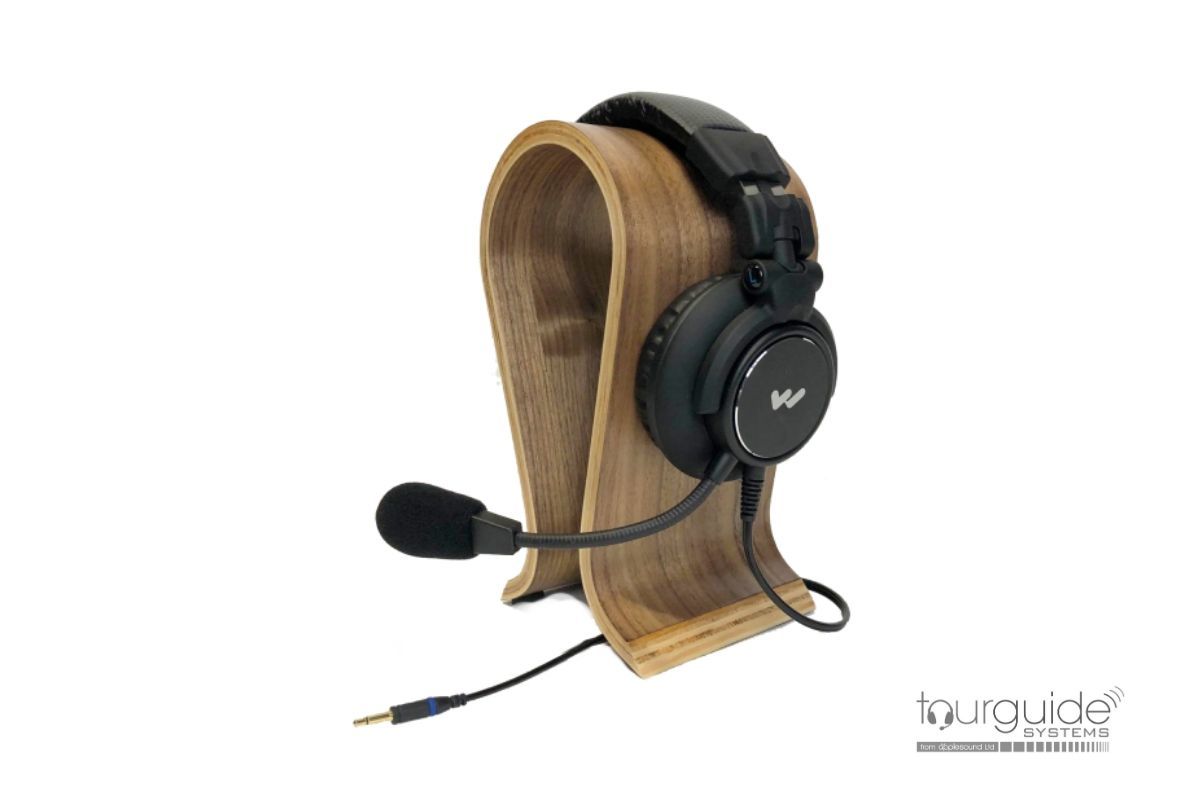

MIC 157 single-muff headset for DLT 400

OVERVIEW

Single headset with boom microphone. For use with the Williams Sound Digiwave DLT 400 transceiver.
Soft earpads, full-size over-ear fitting. Boom microphone on flexible arm adjusts easily for close-talking position.

SPECIFICATIONS

Connector TRRS 3.5mm plug
Microphone Element Unidirectional electret
Microphone Sensitivity 45 dB ± 5 dB
Microphone Frequency Response 100 Hz - 12 kHz
Microphone Impedance 150 Ω
Microphone Signal-to-Noise Ratio >50 dB
Microphone Operating Voltage 1 - 10 VDC
Headphone Driver Type 50 mm, dynamic
Headphone Frequency Response 10 Hz - 20 kHz
Headphone Impedance 46 Ω
Headphone Max SPL Out 96 dB
Headphone Max Power Input 100 mW
Cord Length 42”
Replacement Mic Screen part WND 058
Replacement Earpad part EAR 058
Approvals CE, RoHS

Warranty 90 days
